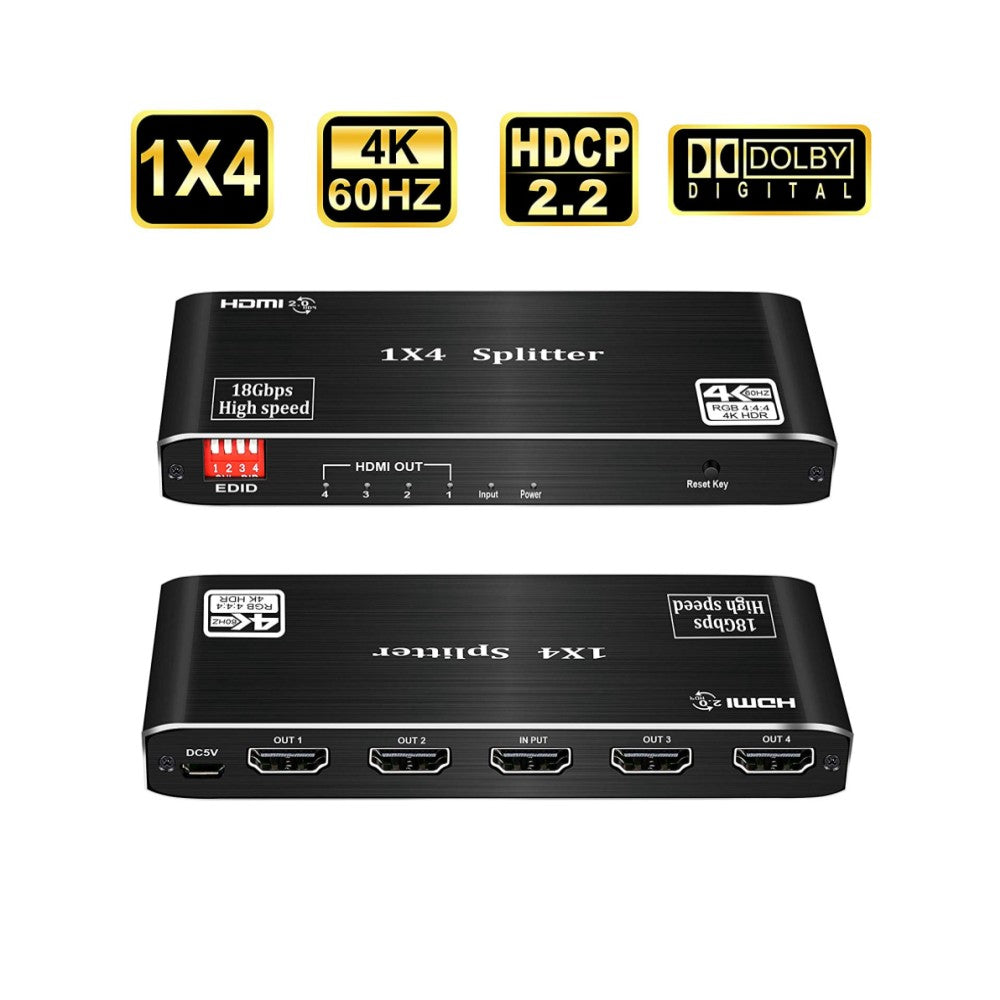

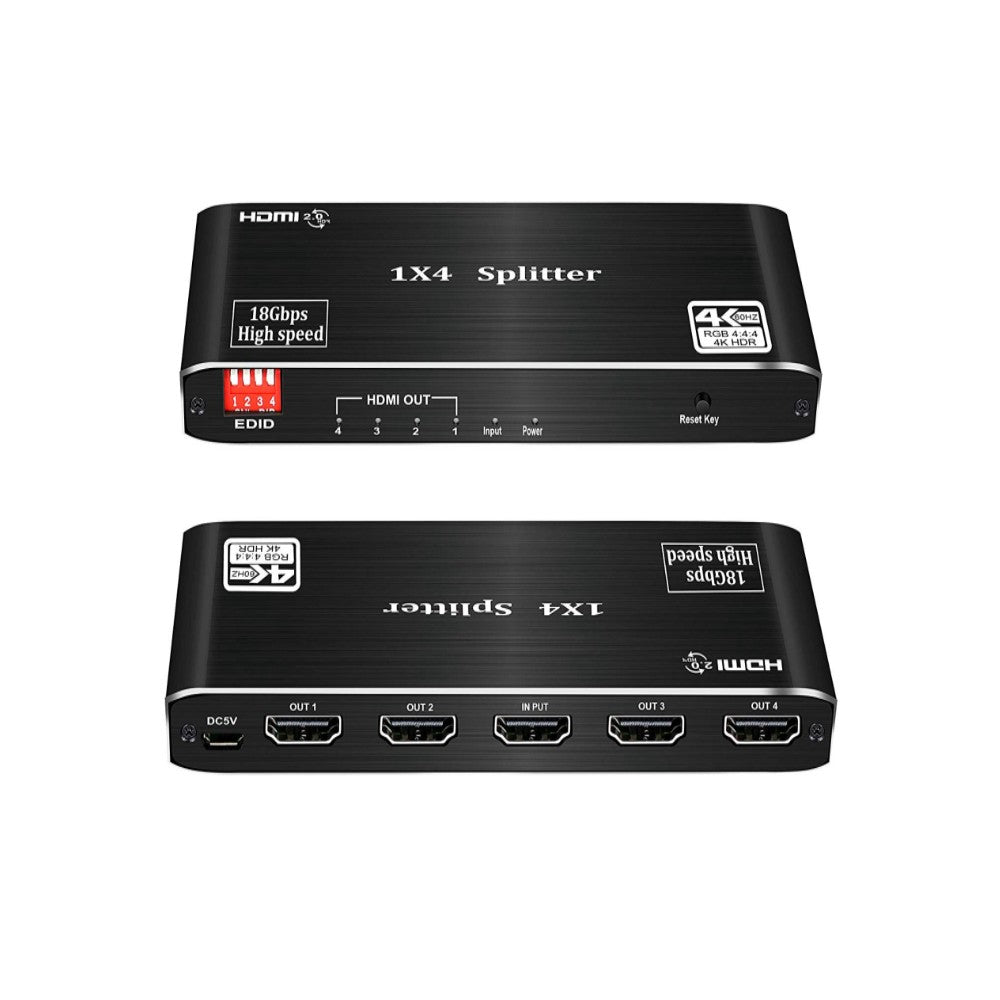

CDD HDMI Splitter, 1 Input / 4 Outputs, 3D, 4K x 2K@60Hz, HDCP 2.2, V2.0 with EDID Control
SPCD0014
We currently have 53 in stock.
Details

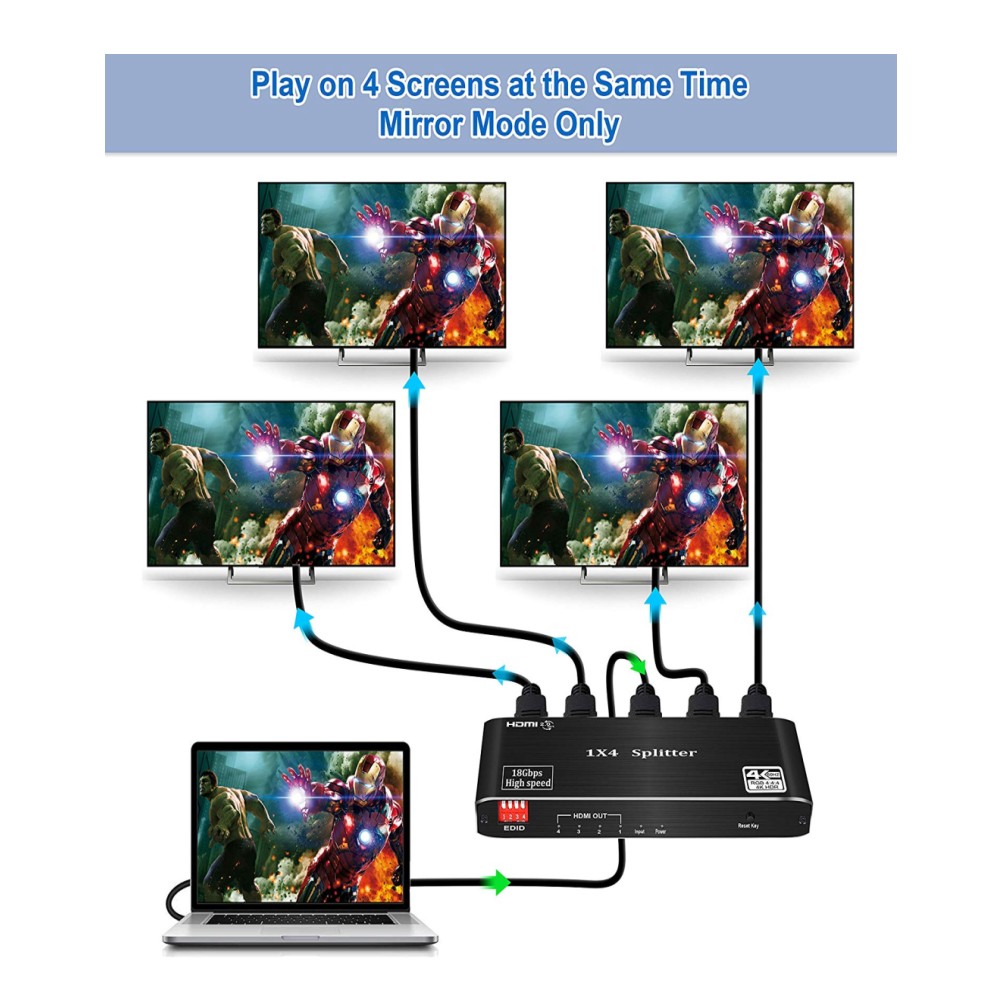

- This 1 x 4 CDD HDMI Splitter distributes 1 HDMI source to 4 HDMI displays simultaneously
- Compliant with HDMI 2.0b and HDCP2.2
- Supports video format up to 4k2k@60Hz
- Supports 3D video formats
- Supports 8/10/12 bit deep color with 26AWG HDMI cable input
- 15M output up to 25M

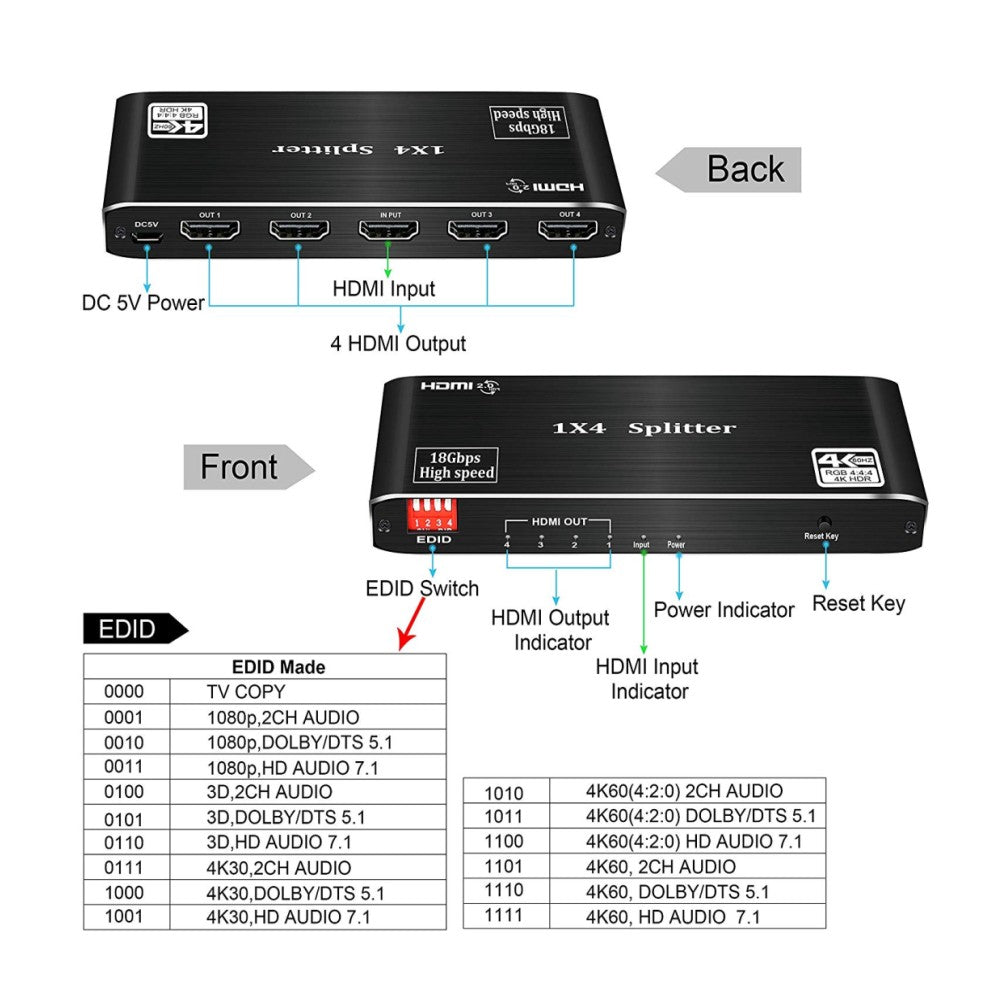

- Supports 4K resolution with 26AWG HDMI cable input 8M output up to 15M EDID control switch
- Audio format supports: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Â
HDMI Input/Output | Â 4K2K@60Hz/1080p/1080i/720p/576p/576i/480p/480i |
Video Bandwidth | 18.2Gbps/600Mhz |
Input Video Signal | .05-1.5 volts p-p |
Power Adapter Format | Input AC (50Hz, 60Hz) 100V-240V Output 5V/1A |

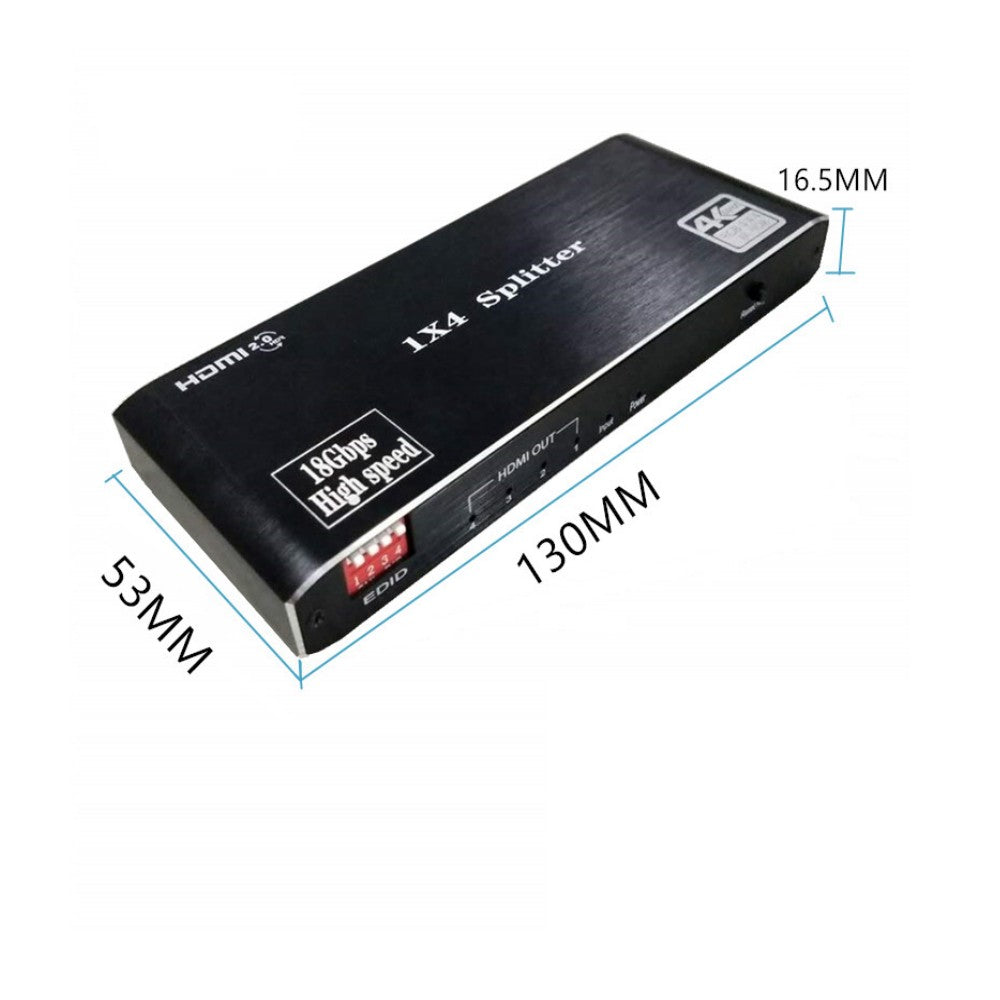

Dimensions—(L x W x H) | 131 x 54 x 16.3mm |
