CDD HDMI Extender with IR, Over One Cat5e/6, 60 Meters, 1080P
SWCD0010
Details

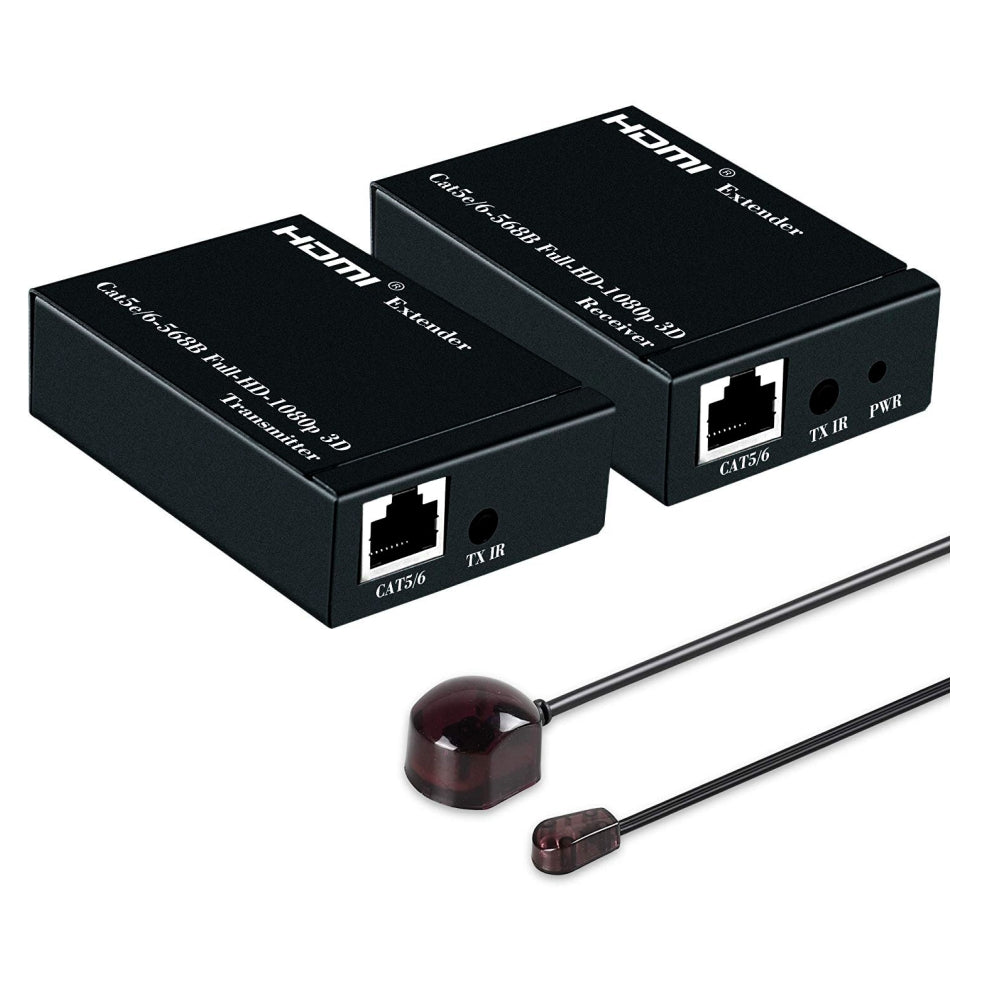

This HDMI video extender allows you to extend your 3D or HD display up to 197ft (60 meters) away from your source device over a single CAT5e or CAT6 cable at a resolutions of 1080p/60Hz.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -15℃ ~ 55℃ |
| Power | |
| Input Voltage | 125V |
| Power Supply | 2 x 5 volt, 1 amp DC Converter |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | No |
| DVD to TV | Yes |
| Connector(s) | |
| Transmitter | HDMI Input Female, RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
| Performance | |
| Video | 480i/ 480p/ 720p/ 1080i/ 1080p@60Hz/ 3D 1080p |
| Video Bandwidth | 165MHz Max |
| Transmission Range | Single CAT-5e cables up to 50 metres (164 ft) Single CAT-6 cables up to 60 metres (197 ft) |
| 3D | 1080p |
| Audio | DTS-HD, Dolby-true HD, DTS, Dolby-AC3, DSD |
| HDCP Compliant | Yes |
| Supports EDID 2D, 3D | Yes |
| Compatibility | |
| Sync Device and Display | Set the resolution of the source device to match the display resolution. The extender will not work if the source devices resolution is set higher than the displays capabilities |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.5 lbs [0.2kg] |
| Package Weight | 1 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 2 - DC5V Power Adapter |
|
| 1 - Manual | |
