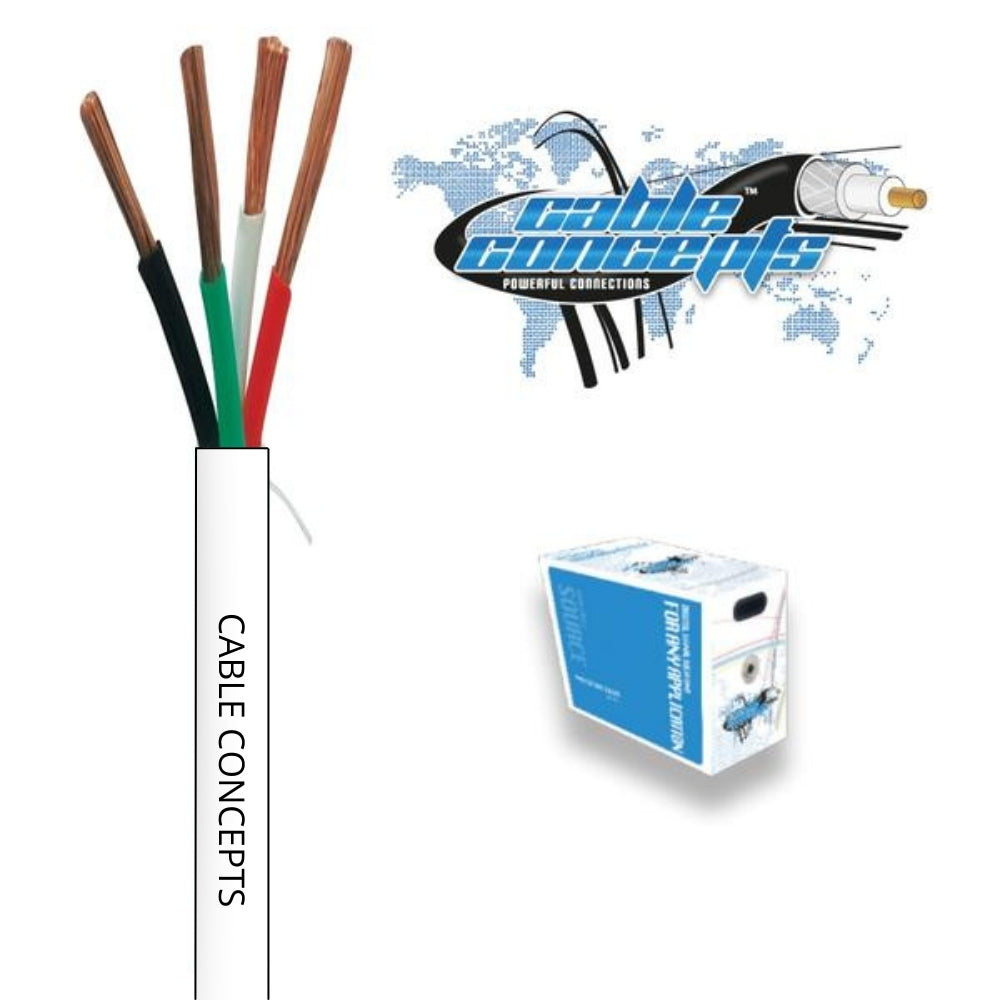

Cable Concepts Speaker Wire 16AWG/4C, 65 Strand, FT4, CSA, 500 Ft, White

SWCH16465WH

We currently have 36 in stock.

You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

16 gauge (65X0.16mm) 2 strand bare copper conductor; PVC insulation, ripcord
PVC jacket.
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call.


1) Physical Dimensions
Center Conductor:-----------65X0.16+0.01mm Strand Bare Copper
Insulation:----------------------2.0+0.02mm PVC
Insulation Thickness:--------0.254mm
Ripcord:-------------------------Yes
Jacket:---------------------------5.60+0.03mm PVC
Jacket Thickness:------------0.38mm

2) Mechanical Specification
Operating Temperature Range:-----------20 To +75
Cable Weight:-------------------------------------43.25 Lbs/Mft
Min. Bend Radius:----------------------------2.2 in.

3) Electrical Characteristics
Operating Voltage:----------------------------300 VRMS
Max. Conductor DCR:------------------------4.23 /Mft
Capacitance:----------------------------------------33 pF/ft
