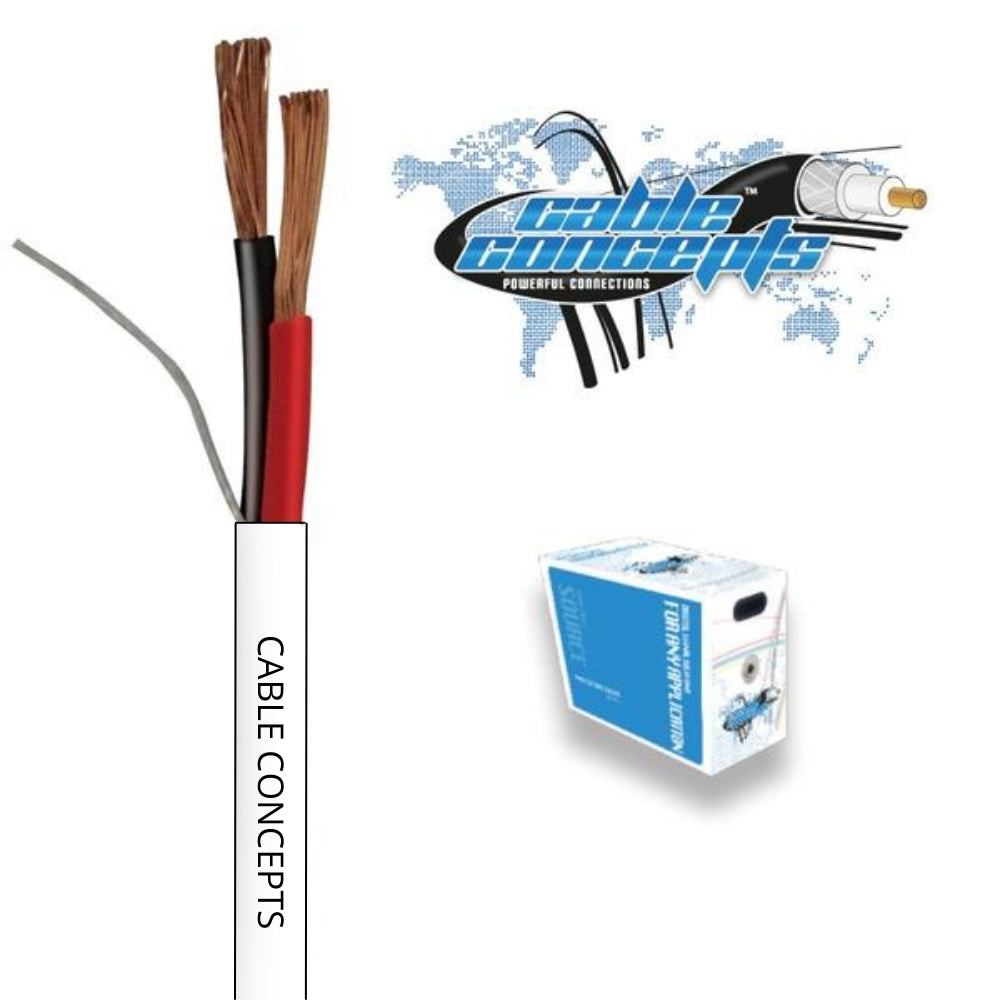

Cable Concepts Speaker Wire 14AWG/2C, 65 Strand, FT4, CSA, 1000 ft. White

SWCH14265WH

We currently have 44 in stock.

You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

14 gauge (65X0.33mm) 2 strand bare copper conductor; PVC insulation, ripcord
PVC jacket
Application: Commercial audio, Security systems, Power limited control,
Sound & audio, Intercom/PA systems, Broadcast and Nurse call


1) Physical Dimensions
Center Conductor:----------65X0.33+0.01mm Strand Bare Copper
Insulation:--------------------2.0+0.02mm PVC
Insulation Thickness:-------0.33mm
Ripcord:----------------------YES
Jacket:------------------------5.0+0.03mm PVC
Jacket Thickness:-----------0.38mm

2) Mechanical Specification
Operating Temperature Range:---------------20 To +75
Cable Weight:---------------------------------37.50 Lbs/Mft
Min. Bend Radius:----------------------------2.2 in.

3) Electrical Characteristics
Operating Voltage:----------------------------300 VRMS
Max. Conductor DCR:------------------------2.62/Mft
Capacitance:------------------------------------32 pF/ft

4) Approval:
NEC/(UL), CSA, FT4, CMG, CEC/C(UL)
