Cable Concepts RG6, 60% Br. 3GHz, FT4/CSA, Box, 1000 Ft

WICH2160BK

We currently have 287 in stock.

Colour
Black
White
Gray

You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

Cable Concepts Single RG6, 60% Br. 3GHz, FT4, CSA, Shaw Direct Approved.

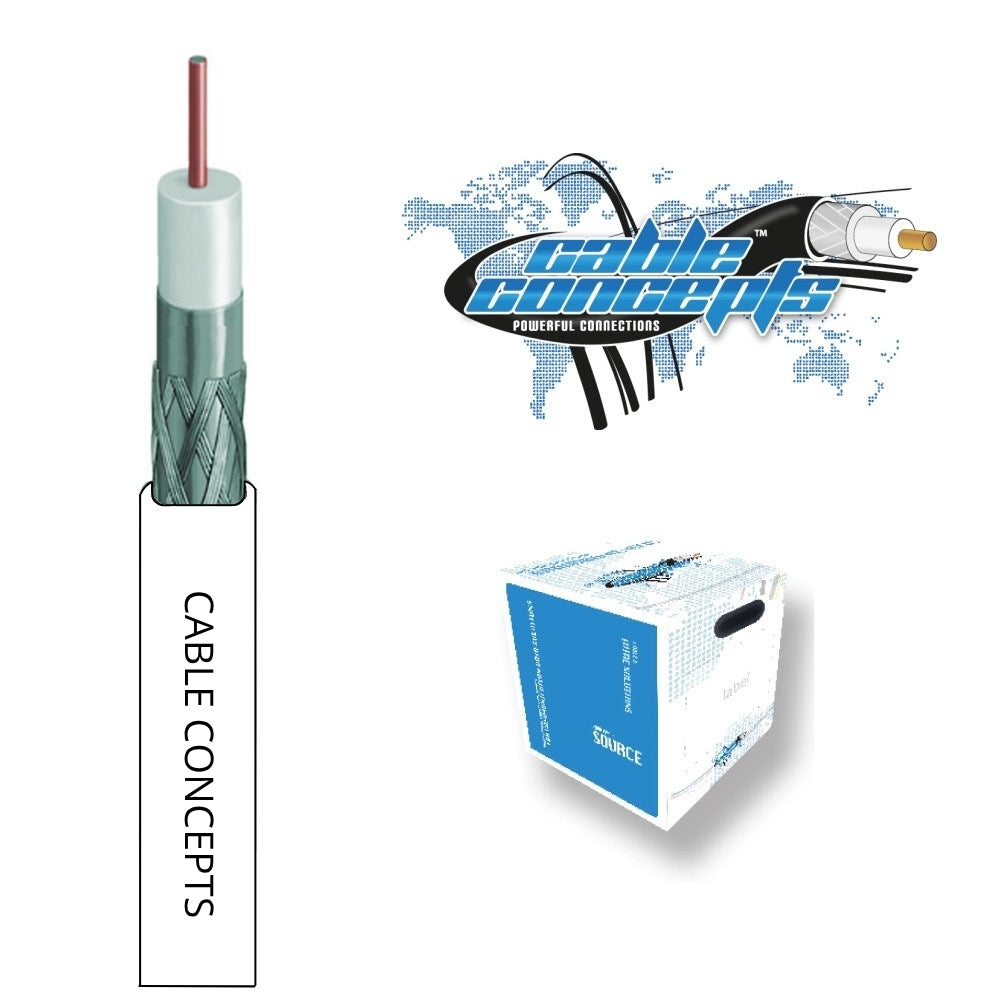

 Cable Concepts single RG-6 coaxial cable has an 18 gauge inner conductor surrounded by a tubular dielectric insulating layer. An overlapping aluminum foil layer is bonded to the dielectric and then protected by an insulating outer sheath or jacket. This cable can be used both indoor and outdoor, is (FT4) fire rated, but is NOT suitable for burial. This cable is ISO / UL / CUL / CSA approved.


Construction materials:
Center conductor material: 1.02+0.01mm Copper-clad steel wire.
Dielectric material: 4.57+0.05mm Foam PE.
Jacket material: 6.90+0.05mm PVC.
Shield (braid) coverage: 60 %.
Shield (braid) material: Aluminum.


Dimensions:
Cable length: 305 m / 1000 ft.
Cable weight: 32.00 lbs.
Diameter over center conductor: 0.0403 in per 1 strand.
Diameter over dielectric: 0.1800 in.
Diameter over jacket: 0.272 in.

Electrical specifications:
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Nominal velocity of propagation (NVP): 85 %.
Structural return loss: 20dB min (5-2300MHz)
Structural return loss test method: 100% swept tested.
UL temperature rating: -40 °C to +75 °C.

General specifications:
Application: Satellite, CCTV, CATV.
Cable type: Series 6.
Jacket color: Black, white, grey.
Product number: WICH2160.
Center conductor gauge: 18 AWG.
Frequency: 3000 MHz.
Center conductor type: Solid.
Sequential footage marking: Every two feet.
Packaging type: Box.

Mechanical specifications:
Maximum recommended pulling tension: 45 lbs.
Minimum bend radius (install): 3 in.
Attenuation [68 F. / 20 C.]:
 Frequency (MHz) Maximum (dB/100 ft.) Maximum (dB/100 m)
5 0.58 1.9
50

1.5

4.9
100 2.00 6.5
200 2.8 9.2
400 4.1

13.6

700 5.6 18.4
900 6.2 20.3
1000 6.5 21.4
1450 8.00 26.2
1800 8.5 27.9
2100 9.5 31.1
