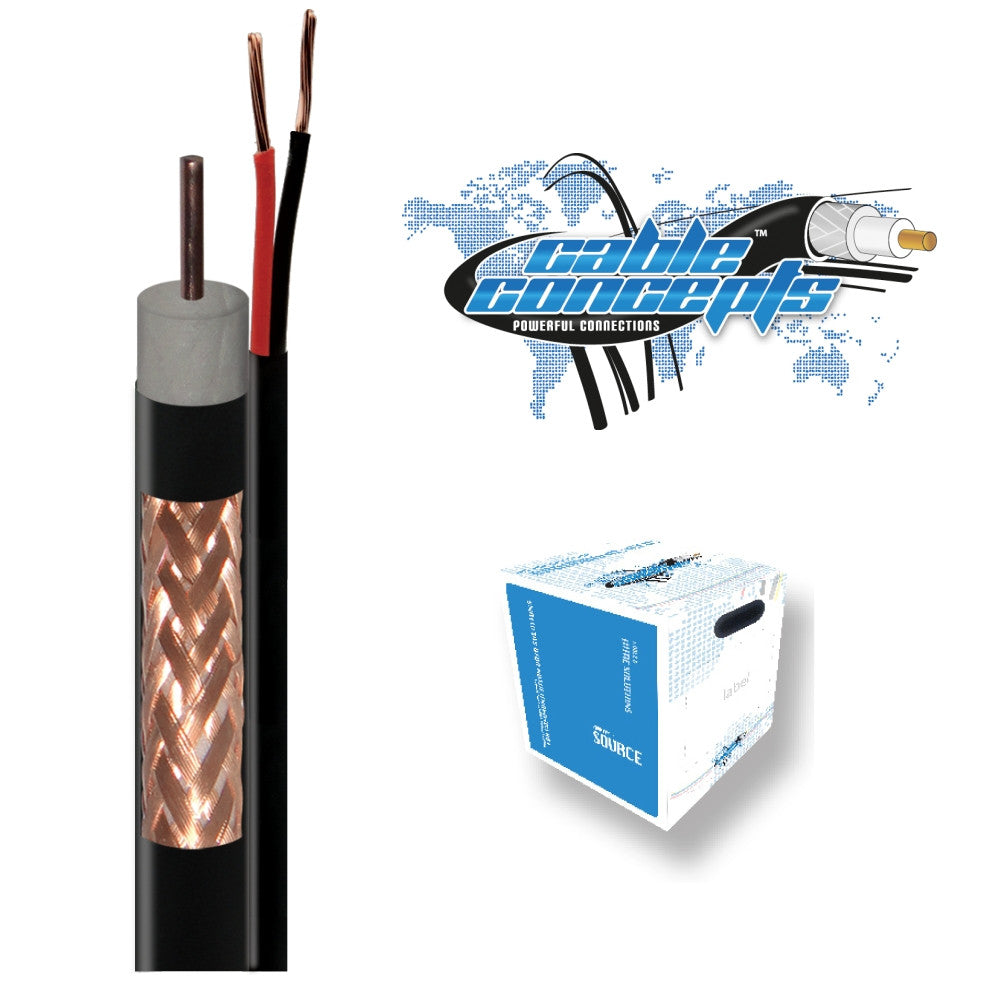

Cable Concepts RG59 95% Br. 18AWG/2C Power Drain, 500 Ft, Black

WICH5995BK

We currently have 50 in stock.

You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

1) Description
20 gauge (0.81mm) solid bare copper center conductor; gas expanded
PE dielectric; shield of bare copper braid wire; jacket of PVC;
with 18AWG/2C. Nominal coax O.D. 5.80mm.

2) Physical Dimensions
Center Conductor:----------0.81+0.01mm Solid Bare Copper
Dielectric:--------------------3.66+0.05mm Foam PE
Braid Coverage:-------------95%X16X6X0.16+0.005mm Bare Copper Wire
Jacket(coax):-----------------5.80+0.05mm PVC
18AWG/2C:-----------------7X0.3.86+0.01mm Stranded Bare Copper
Insulation:--------------------1.63+0.03mm Solid PE
Jacket (2C):------------------3.80+0.05mm PVC
Thickness(2C):--------------0.85+0.05mm

3) Mechanical Characteristics
Operating Temperature Range:---------------20C To +75C
Max. Recommended Pulling Tension: -----68 lbs
Min. Bend Radius (Install):-------------------2.5 in.

4) Electrical Characteristics
Sparker Test:----------------3000 VAC
Impedance:------------------75+3 Ohm
Capacitance:-----------------54+3pF/m
Velocity of Propagation:---82%
SRL:--------------------------20dB (10-300MHz) 100% Sweep Tested
