Cable Concepts Low Voltage Cable, 18 AWG, 2 Conductor, FT4/CSA Approved, 1000 Ft
WICH0000WH
We currently have 259 in stock.
Details

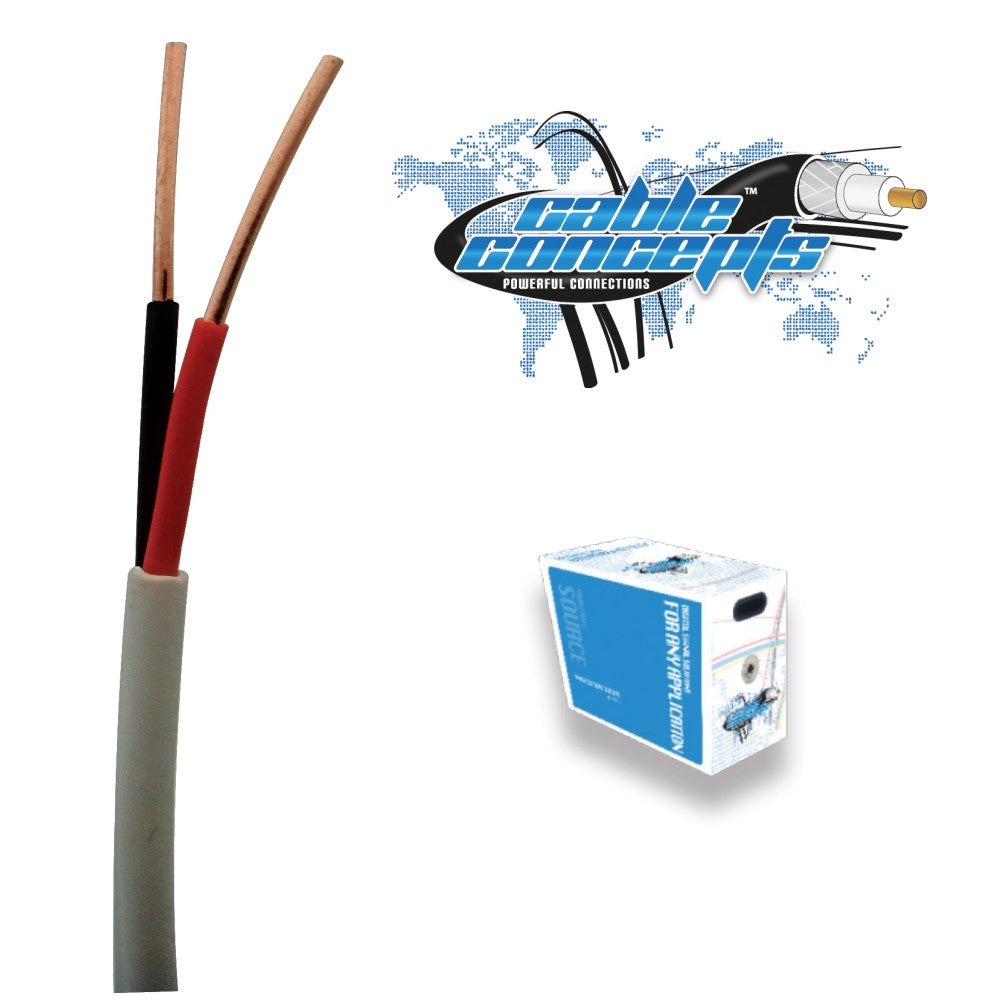

Cable Concepts Low Voltage Cable (LVT), 18 AWG, 2 Conductor, 1000 Ft.
This cable can be used both indoor and outdoor, is (FT4) fire rated, but is NOT suitable for burial. This cable is ISO / UL / CUL / CSA approved.
Application: Used for power limited circuits such as thermostat, air conditioning and heating controls, heat pumps, bell and alarm systems, signal systems, intercom systems, door bells, remote control units where maximum voltage does not exceed 30 Volts.
| 1) Description |
| 18 Gauge, 2 Conductor solid bare copper, 0.010 |
| Non plenum insulation, Overall 0.015 Jacket, UL & CSA |
| 2) Physical Dimensions | |
| Center Conductor: | 1.02+0.01mm BC |
| Insulation: | 1.53+0.02mm PVC |
| Thickness: | 0.255mm |
| Color Code: | Black & Red |
| Jacket: | 3.96+0.05mm PVC |
| Thickness: | 0.45mm |
| 3) Mechanical Characteristics | |
| Operating Temperature Range: | 20 To +75 |
| Installation Temperature Range: | 0 To +60 |
| Voltage Rating: | 30V |
| Capacitance: | 26 pF/ft |
| DCR: | 6.385 phms/1000ft @ 68°F |
