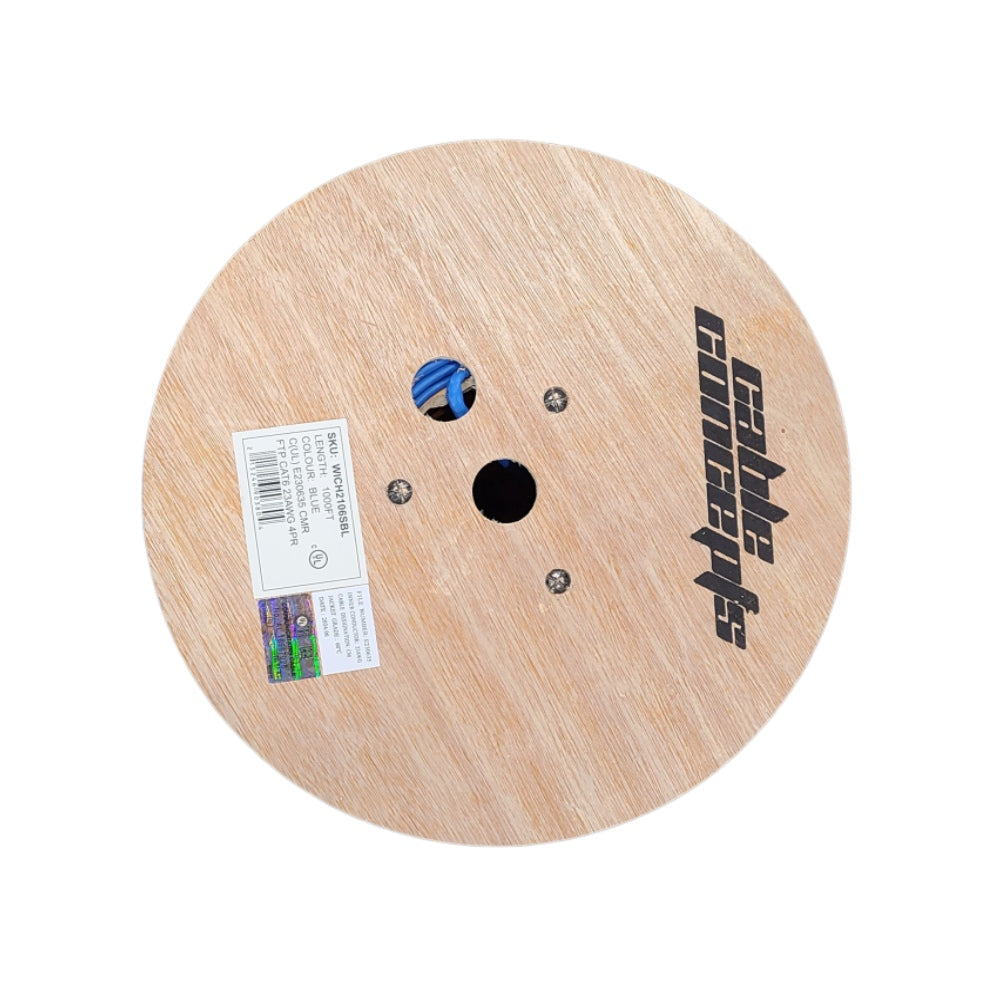

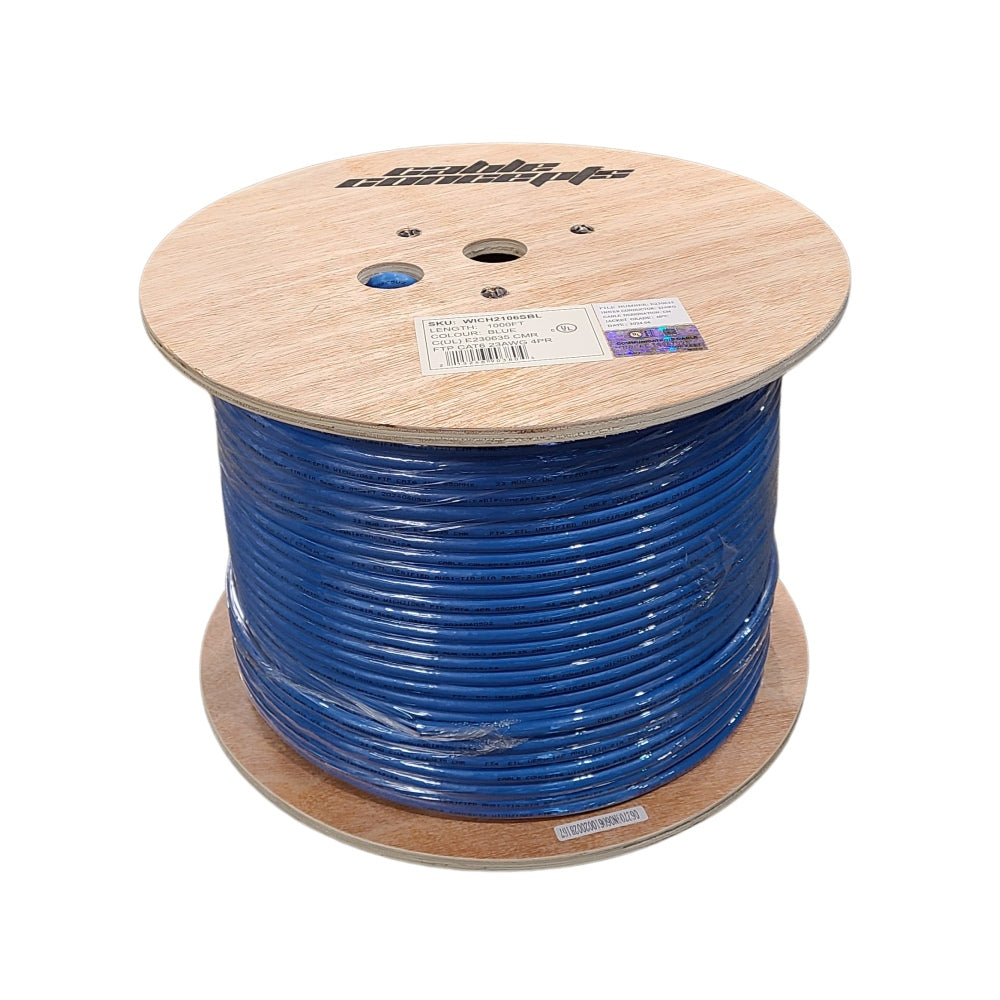

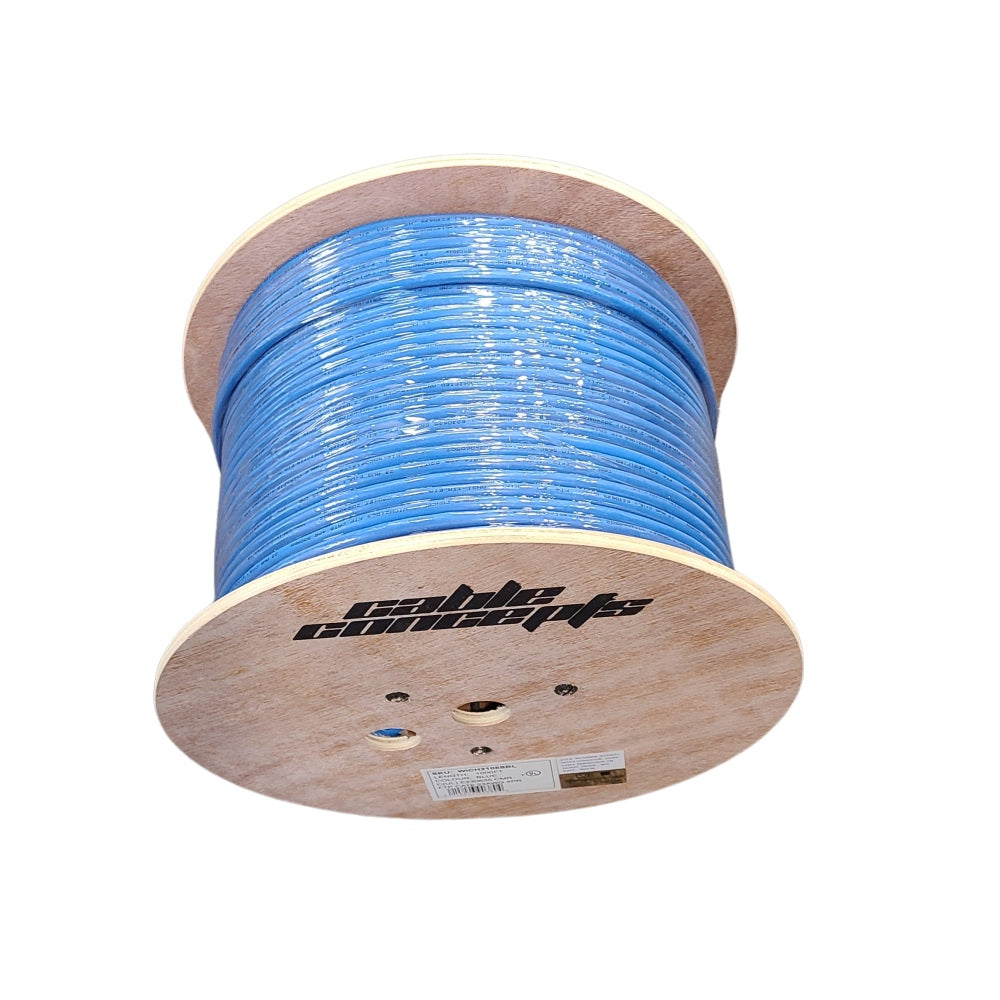

Cable Concepts Cat6 Shielded, 550MHz 23AWG 4 Pair, FT4/CSA, 1000 Ft, Wooden Reel, Blue
WICH2106SBL
Details
This riser rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6 jack. It is great for all high bandwidth applications such as high speed networks.ย
This cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The solid core is excellent for long distance transmission and suited for installations.ย
Our CAT6 cable is the most practical and economical solution for all your networking applications, it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection.
Description

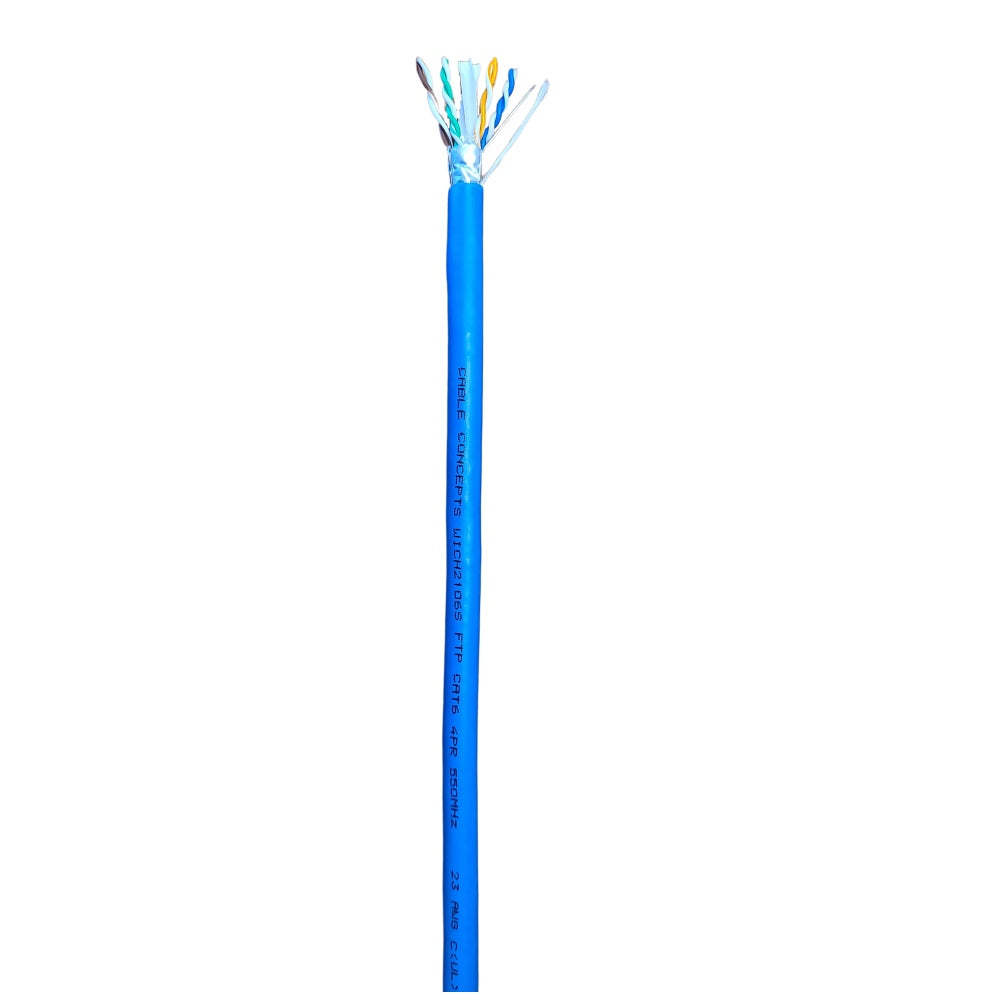

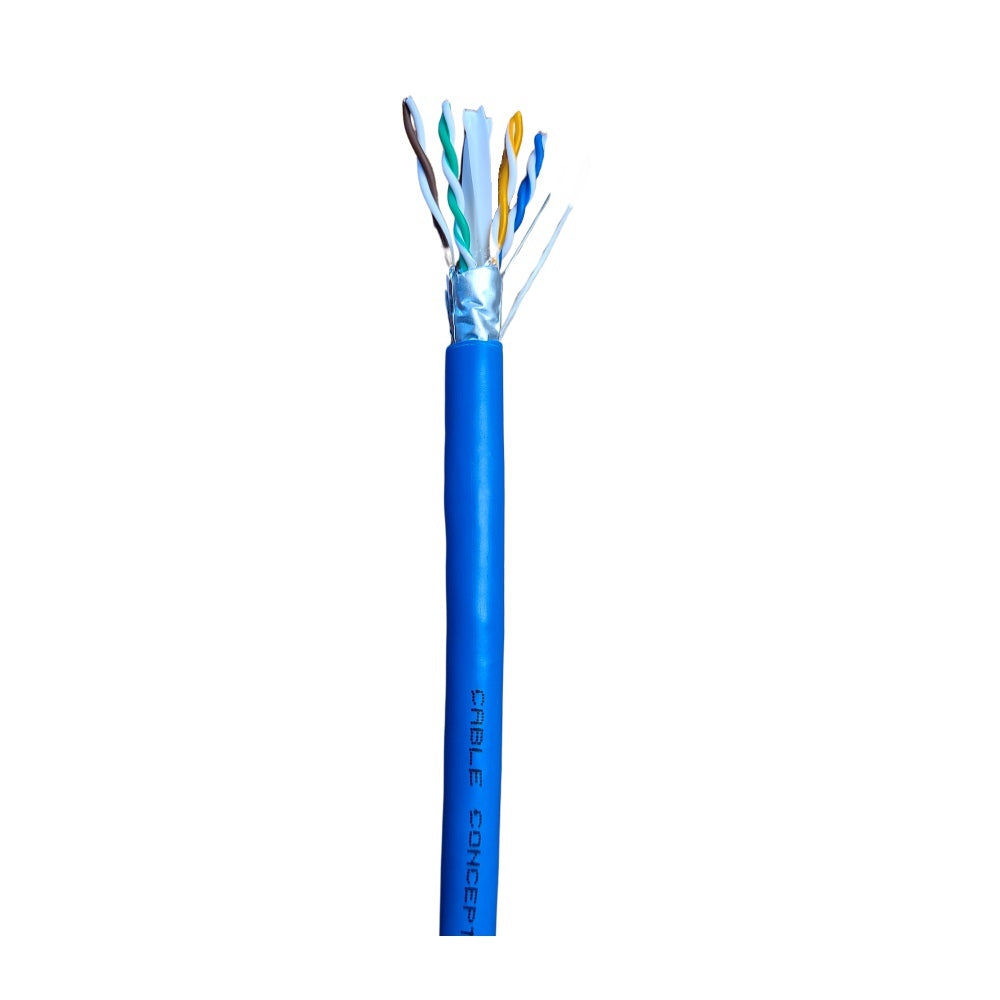

23 AWG solid bare copper conductors, Polyolefin insulation, twisted pairs, mylar and AL foil, PVC jacket.ย
Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL. Component or Composite Video, AES/EBU, Digital Video, RS-422
|
Physical Dimensionsย |
ย |
|
Center Conductor:ย ย |
0.57+0.01mm BC |
|
Insulation: |
0.953+0.02mm PE |
|
Pair: |
4 |
|
Separator: |
Yes |
|
Mylar: |
Yes |
|
Shield: |
AL Foil |
|
Drain Wire: |
1X0.0.4mmTC |
|
Jacket: |
6.50+0.2mm CMR-PVC |
|
Mechanical Characteristics |
|
|
Operating Temperature Range: |
-20โ to +75โ |
|
Installation Temperature Range: |
0โ to +60โ |
|
Max. Recommended Pulling Tension:ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย |
50 Lbs |
|
Min. Bend radius (Install):ย ย ย |
0.50 in. |
ย
|
Pair Identification |
ย |
|
Pair 1 |
Blue/White w/Co-Extruded Blue Stripe on White Single |
|
Pair 2 |
Orange/White w/Co-Extruded Orange Stripe on White Single |
|
Pair 3 |
Green/White w/Co-Extruded Green Stripe on White Single |
|
Pair 4 |
Brown/White w/Co-Extruded Brown Stripe on White Single |
ย
|
Electrical Characteristics |
ย |
|
Capacitance: |
15.5 pF/ft |
|
Velocity of Propatation: |
67% |
|
Conductor DCR: |
9.380ฮฉ/100m |
|
Impedance: |
1.0 โ 100Mhz /100 ฮฉ+ 15% |
|
100 โ 200Mhz /100 ฮฉ+ 22% |
|
|
200 โ 300Mhz /100 ฮฉ+ 32% |
ย
Attenuation:
|
Attenuation |
[@68โ. (20โ)] |
||
|
Frequency (MHz) |
Max. (dB/100 m) |
Frequency (MHz) |
Max. (dB/100 m) |
|
1.0 |
2.0 |
62.5 |
14.8 |
|
4.0 |
4.0 |
100.0 |
19.0 |
|
8.0 |
5.2 |
155.0 |
24.1 |
|
10.0 |
5.8 |
200.0 |
27.7 |
|
16.0 |
7.3 |
250.0 |
31.3 |
|
20.0 |
8.2 |
350.0 |
37.8 |
|
25.0 |
9.2 |
400.0 |
40.8 |
|
31.25 |
10.3 |
550.0 |
49.0 |
ย
Return Loss:
|
Return Loss |
[@68โ. (20โ)] |
||
|
Frequency (MHz) |
Min. (dB/100 m) |
Frequency (MHz) |
Min. (dB/100 m) |
|
1.0 |
23.0 |
62.5 |
23.5 |
|
4.0 |
23.6 |
100.0 |
23.0 |
|
8.0 |
25.4 |
155.0 |
21.6 |
|
10.0 |
26.0 |
200.0 |
21.0 |
|
16.0 |
26.0 |
250.0 |
18.3 |
|
20.0 |
26.0 |
350.0 |
17.3 |
|
25.0 |
25.5 |
400.0 |
16.9 |
|
31.25 |
25.0 |
550.0 |
15.9 |
ย
Electrical Performanceย [@68โ. (20โ) (dB/100m)]
|
Frequency MHz |
Near to Cross Talk |
ACR Min |
Power Sum Min. |
||
|
Min. |
NEXT |
ELFEXT |
ACR |
||
|
1.0 |
81.3 |
79.3 |
78.3 |
70.8 |
76.3 |
|
4.0 |
72.3 |
68.6 |
69.3 |
58.8 |
65.5 |
|
8.0 |
67.8 |
62.6 |
64.8 |
52.7 |
57.5 |
|
10.0 |
66.3 |
60.5 |
63.3 |
50.8 |
57.4 |
|
16.0 |
63.2 |
55.9 |
60.3 |
46.7 |
52.8 |
|
20.0 |
61.8 |
53.6 |
58.8 |
44.8 |
50.5 |
|
25.0 |
60.3 |
51.2 |
57.3 |
42.8 |
48.0 |
|
31.25 |
58.9 |
48.6 |
55.9 |
40.9 |
45.4 |
|
62.5 |
54.4 |
39.6 |
51.4 |
34.9 |
36.5 |
|
100.0 |
51.3 |
32.3 |
48.3 |
30.8 |
29.3 |
|
155.0 |
48.4 |
24.4 |
45.5 |
27.0 |
21.5 |
|
200.0 |
46.8 |
19.1 |
43.8 |
24.8 |
16.4 |
|
250.0 |
45.3 |
14.0 |
42.3 |
22.8 |
11.5 |
|
350.0 |
43.1 |
5.3 |
40.2 |
19.9 |
3.2 |
|
400.0 |
42.3 |
1.5 |
39.3 |
18.8 |
NA |
|
550.0 |
40.2 |
NA |
37.2 |
16.0 |
NA |
ย
Approval:
CUL Specification: CMR, CSA, FT4ย ย EU CE Mark: YESย ย EU RoHS Compliance: YES
