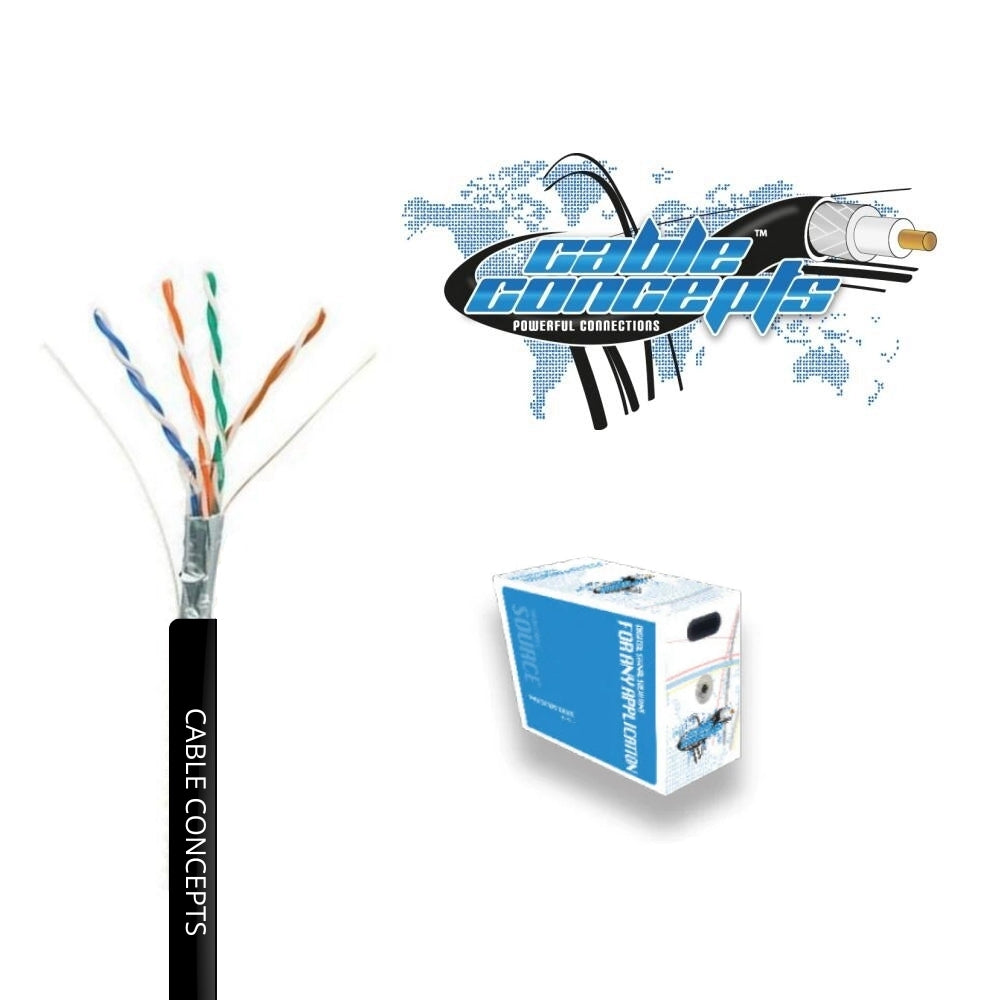

Cable Concepts Cat5E Shielded/Outdoor, 350Mhz, 4Pr, 24AWG, CSA/FT4, -40 - +70 Degrees, 1000 Ft, Black
WICH2205BK
Details
- Our Cat5e Solid Bare Copper 24AWG bulk cable is here for your custom installation.
- This Solid Bare Copper cable can be used in the creation of patch cables for shorter runs.
- Solid Bare Copper cable by design is built for flexible installations in behind racks, computers, servers and routers and much more!
- Cat5e 24AWG Solid Bare Copper cable is rated for 350MHz and can achieve 1Gb up to 328 Feet (100m) in length.
- This Cat5e 24AWG Solid Bare Copper cable is shielded giving you extra protection from EMI and outside signal interference.
- This cables structure is F/UTP which has a shielding wrapped around all 4 twisted pairs.
- Our Cat5e Solid Bare Copper cable is CUL Listed and pure copper for optimal safety and performance.
- Keep track of how much cable you have left with our footage marked on the cable jacket.Â
| Â 1) Description |
| 24 AWG solid bare copper conductors, overall aluminum foil shield, Polyolefin insulation, twisted pairs, ripcord, drain wire, PVC jacket (red, orange, yellow, green, white, blue or gray) Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422 |
| 2) Physical Dimensions | |
| Center Conductor: | 0.50+0.01mm BC |
| Insulation: | 0.91+0.02mm PE |
| Shield: | Aluminum Foil |
| Drain Wire: | 0.50+0.01mm BC |
| Mylar: | Yes |
| Jacket: | 6.00+0.05mm PVC |
| Ripcord: | Yes |
| 3) Mechanical Characteristics | Â |
| Operating Temperature Range: | -40 to +75 |
| Installation Temperature Range: | 0 to +60 |
| Max. Recommended Pulling Tension: | 25 lbs |
| Min. Bend Radius (Install): | 1 in. |
| Â 4) UTP CAT 5E Pair Identification: |
| Pair 1 Blue/White w/Co-Extruded Blue Stripe on White Single |
| Pair 2 Orange/White w/Co-Extruded Orange Stripe on White Single |
| Pair 3 Green/White w/Co-Extruded Green Stripe on White Single |
| Pair 4 Brown/White w/Co-Extruded Brown Stripe on White Single |
| 5) Electrical Characteristics | |
| Capacitance: | 15 pF/ft |
| Velocity of Propagation: | 70% |
| Conductor DCR: | Â 9.38/100m |
| Impedance: | 1.0 100Mhz /100 + 15% |
