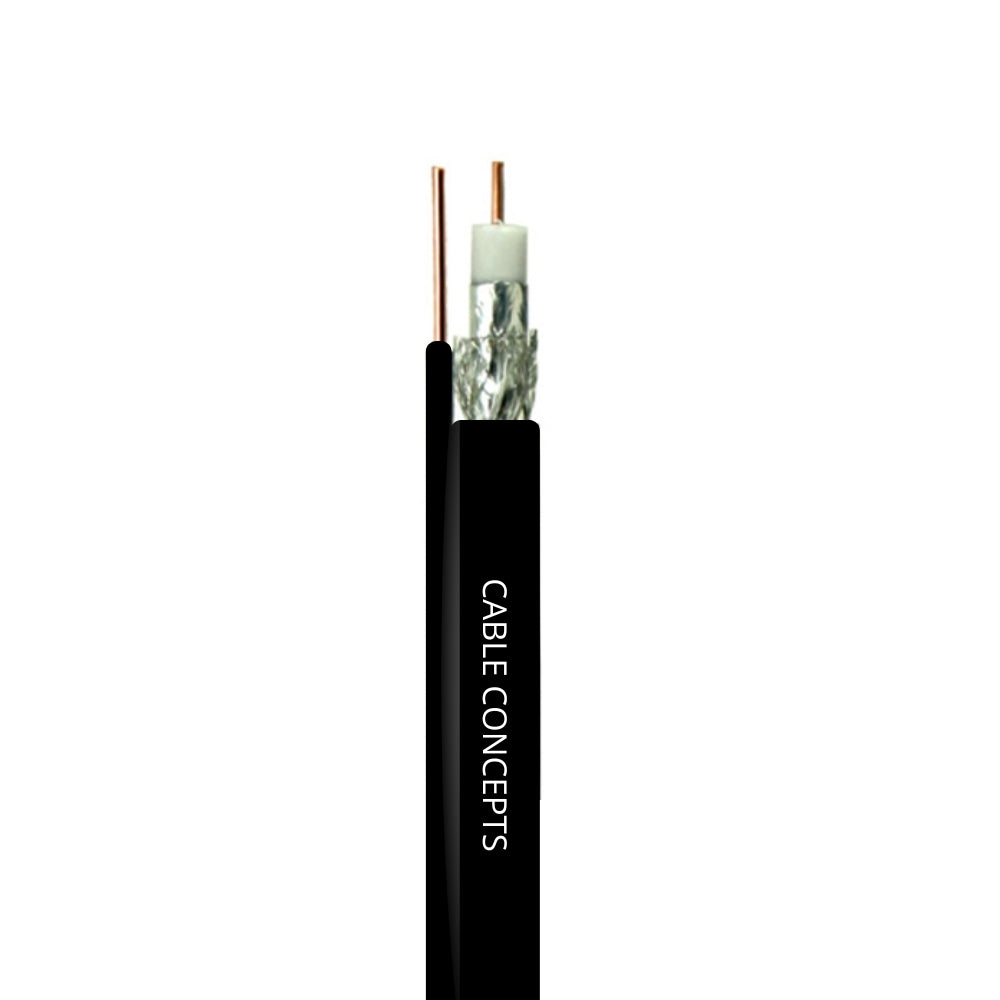

Cable Conceps RG6 Solid Copper Core With 17 AWG Messenger, Wooden Reel, Black

WICH0004BK

We currently have 62 in stock.

You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

1) Construction


Center Conductor: 1.02+0.01mm Solid Bare Copper
Dielectric: 4.57+0.05mmFoam PE
Shield: Bonded Al Foil
Braid Coverage: 60%X16X5X0.12+0.005mmAlu-Mag
Jacket: 6.90+0.05mm PVC
Messenger: 1.2mm Copper Clad Steel Wire
Jacket: 2.7mm PVC



2) Characteristics

Operating Temperature Range: -40℃ To +75℃
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)



3) Approval

Approvals: CSA, CMG, CUL, UL, ISO



4) Attenuation

Frequency
(MHz)
Max
(dB/100M)
Frequency
(MHz)
 Max
(dB/100M)
5 1.9 750 18.54
55 5.25 865 20.01
83 6.4 1000 21.49
187 9.35 1200 23.52
211 10.01 1450 25.82
250 10.82 1750 28.61
300 11.64 2000 30.58
350 12.63 3000 37.73
400 13.61
450 14.44
500 15.29
