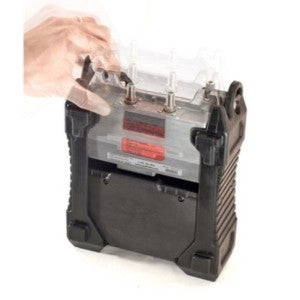

Applied Instruments XR-S2ACM-01 Tuner Module for use with XR-3 for VSAT, Broadcast TVRO

SMAI0005


You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

XR-3, Satellite Signal Level Meter Module For VSAT, Broadcast TVRO, & International DTH

FEATURES
Compatible with XR-3 Modular Test Instrument
Friendly user interface
Satellite ID by "align-to-lock" or "automatic scan
ID multi-lock algorithm eliminates false positives
Powers LNBs and multi-switches
Use for L,C, X, Ku, or Ka band applications
High sensitivity assures alignment optimization
Geo-sensitive"Field Guide" software database stores all compatible satellites and transponders per global region
Program and store up to 256 custom transponders
Controls multi-LNBs/switches with 22kHz DiSEqC tone
Manually tune to custom transponders using front panel keypad
Audible tone for signal lock or peak
Store measurements for Proof-of-performance reporting
"Limit Scan" Pass/Fail for key transponders
Displays antenna settings (AZ / EL / Skew) based on user's postal code or latitude and longitude coordinates
Field replaceable type F barrel connectors
Fast system boot-up time in less than 5 seconds

MEASUREMENTS
Demodulates DVB-S, DSS / DIRECTV Legacy, & DVB-S2 (CCM, ACM, & VCM) signals Signal Level (dBm, dBmV, or dBV) with present and peak bar graph
Signal Quality (IRD, C/N, Eb/No, or Es/No)
Pre-FEC& Post-FEC BER (Bit Error Rate)
PER(Packet Error Rate)
Voltage output of IRD / IDU (29V max)
Current draw of LNB
LNB frequency deviation (LNB LO drift estimate)
Symbol Rate error
Spectrum Screen (frequency on x-axis, amplitude on y- axis)
Constellation Screen (I and Q demodulator values)
SPECIFICATIONS
Frequency Range..........900-2150 MHz
Tuning Resolution.........4kHz
Signal Level Range..... .-75 to -15 dBm (+34 to +94 dBV)
RF Level Accuracy..........+/- 2 dB typical, 3 dB max
Signal Lock Formats.....DVB-S (QPSK), DVB-S2 (QPSK, 8PSK, 16APSK,
32APSK,CCM, VCM, ACM), DSS / DIRECTV Legacy (QPSK)
Impedance.....................75Ohm
LNB Power.....................13VDC for V/R, 18VDC for H/L
                                    21VDCfor DIRECTV SWiM LNBs, 29VDC
Switch Control.................22 kHz, DiSEqC
RF Connector ..................F barrel, field replaceable
Warranty.........................12 month limited
Specifications are subject to change without notice.
