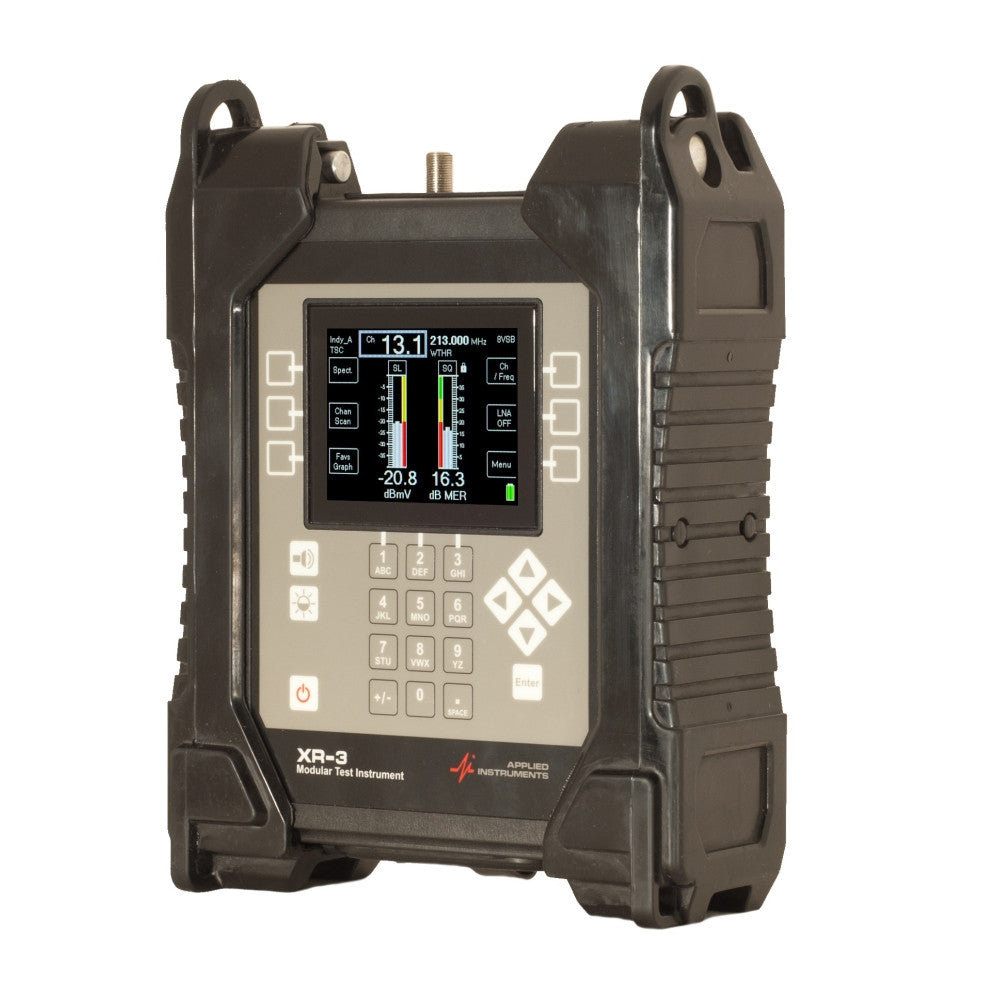

Applied Instruments XR-3 - Modular Test Instrument Base w/ Built-In WiFi (Modules Sold Separately)

SMAI0003WF

We currently have 1 in stock.

You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

Applied Instruments XR-3 - Modular Test Instrument Base w/ Built-In WiFi (modules sold separately).

The XR-3 is a revolutionary test instrument platform. The base unit is a rugged chassis, display, and portable power supply that accepts easily swappable modules for test signal measurement purposes.

The XR-3 is economically efficient because it allows you to choose only the test modules that your application requires. In the future as your testing needs change, you’ll need only a new module, not an entire instrument.

Test modules that “slide and click” into the XR-3 available now include DBS satellite, VSAT satellite, and cable TV / off-air broadcast. Other modules will follow.

The XR-3 platform is ideal for installers and private cable operators that demand fast, easy signal measurements today and in the future.

GENERAL FEATURES
 Durable case with rubber shock guards
 Color graphic LCD screen, sunlight readable display
 Glow-in-the-dark numeric keypad with arrow key controls
 Rechargeable / Easily Replaceable Li-Ion battery
 USB computer interface for firmware updates
 Operates while charging via AC
 Quick charge battery with universal AC or vehicle 12 VDC
 Modular design for longer life and more flexibility
 Accepts various easily-swappable modules (sold separately)


SPECIFICATIONS
Battery.................................................rechargeable Li-Ion, 4400mAh 12.6V Max
Run time/charge.................................4 hours for a single LNA
                                                               (depends on LNA current draw)
Universal AC charger.........................100 to 240 VAC, 50/60 Hz
                                                               fast charge and then trickle
Vehicle charger...................................12VDC
Computer Interface.............................USB (Ethernet optional)
Size/Weight.........................................9”W x 7”H x 2.5”D / 3.2 lbs.
                                                              (without rubber guards) 22.9cm x 17.8cm x 6.4cm / 1452 g
Operating Temperature Range..........-20°F to 120°F (-29°C to 49°C)
Battery Charge Temperature Range..41°F to 100°F (5°C to 38°C)
Warranty................................................12 month limited
Specifications subject to change without notice.


STANDARD ACCESSORIES
 Shoulder strap
 Cordura protective flap
 Universal AC switching power supply with line cord
(100 VAC to 240 VAC Transformer)
 Automobile cigarette-lighter adapter battery charge cord (12VDC)
 PC data transfer cable (USB)
 Quick Start Guide
 Desktop kickstand


OPTIONAL ACCESSORIES
 Hard shell protective carrying case


OPTIONS
 Wi-Fi
• download software updates to XR-3 wirelessly
• upload saved scans from XR-3 wirelessly via FTP
• wirelessly monitor and control XR-3 using XR-3 Remote app on Android mobile device (requires purchase of XR-3 Remote app from Google Play store)



Modules Available

Module Part Number Description Application

XR-TS2-01



Satellite Meter North American DBS /Broadcast TVRO 250-2150 MHz

DISH, DIRECTV, Bell TV, Shaw Direct, and more

XR-TS2-02



Same as XR-TS2-01, but adds 2500-3000 MHz tuning capability for DISH Node to Hopper Band 3

XR-S2ACM-01



Satellite Meter VSAT, Broadcast TVRO, International DTH 900-2150 MHz

iDirect, Hughes Ku,and more

XR-CA-01

Signal Meter - Cable &Off-Air (J.83B) / VHF / UHF 5-1000 MHz



UHF Off-Air, CATV,SMATV (i.e. DISH Smartbox, Blonder Tongue headends)
