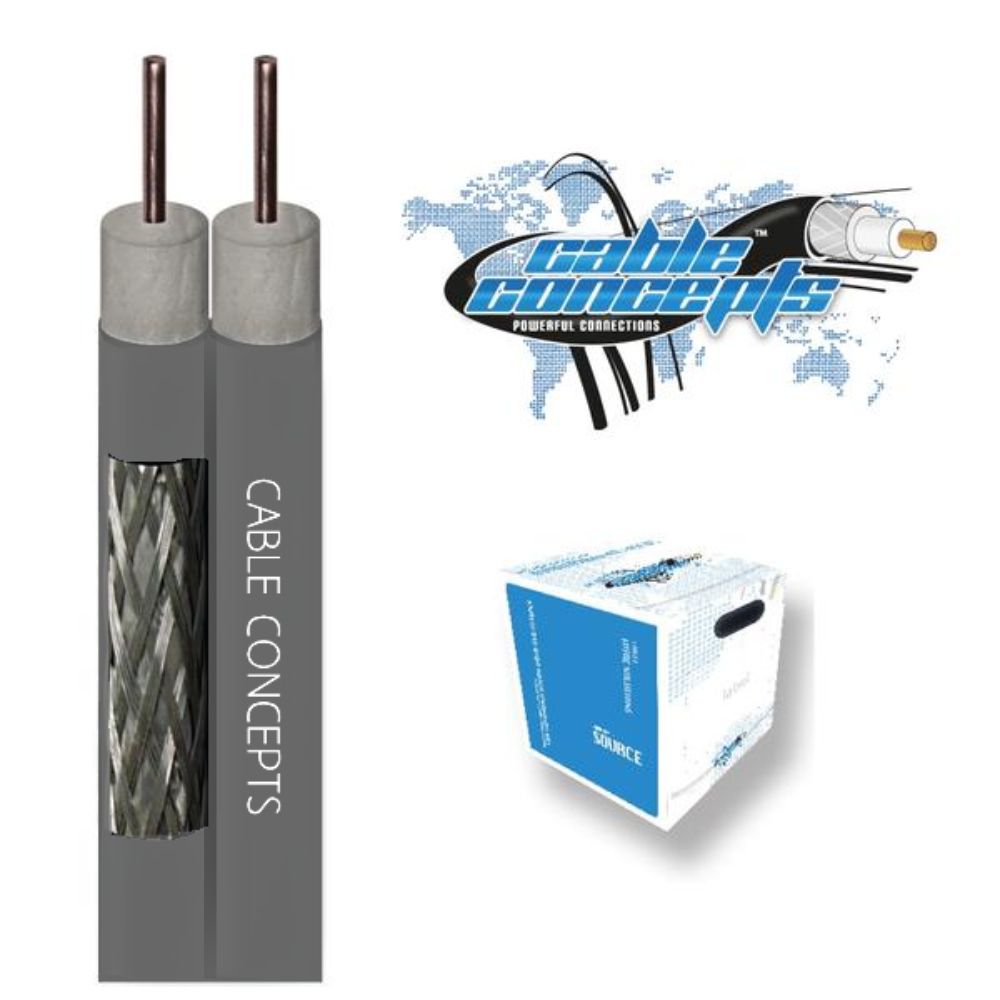

| Construction materials: |
|
| Center conductor material: |
Copper-clad steel wire |
| Dielectric material: |
Foam PE |
| Jacket material: |
PVC |
| Shield (braid) coverage: |
60 % |
| Shield (braid) material: |
Aluminum |
| Dimensions: |
|
| Cable length: |
152.50 m / 500 ft |
| Cable weight: |
32.00 lbs |
| Diameter over center conductor: |
0.0403 in per 1 strand |
| Diameter over dielectric: |
0.1800 in |
| Diameter over jacket: |
0.272 in |
| Electrical specifications: |
|
| Capacitance: |
54 pF/m |
| Characteristic impedance: |
75 ohm |
| Nominal velocity of propagation (NVP): |
85 % |
| Structural return loss: |
15 dB at 10013000 MHz. 20 dB at 51000 MHz |
| Structural return loss test method: |
100% swept tested |
| UL temperature rating: |
-40 °C to 75 °C |
| General specifications: |
|
| Application: |
Satellite, CCTV, CATV |
| Cable type: |
Series 6 |
| Jacket color: |
Black |
| Product number: |
WICH2162 |
| Center conductor gauge: |
18 AWG |
| Frequency: |
3000 MHz |
| Center conductor type: |
Solid |
| Sequential footage marking: |
Every two feet |
| Packaging type: |
Box |
| Mechanical specifications: |
|
| Maximum recommended pulling tension: |
45 lbs |
| Minimum bend radius (install): |
3 in |
