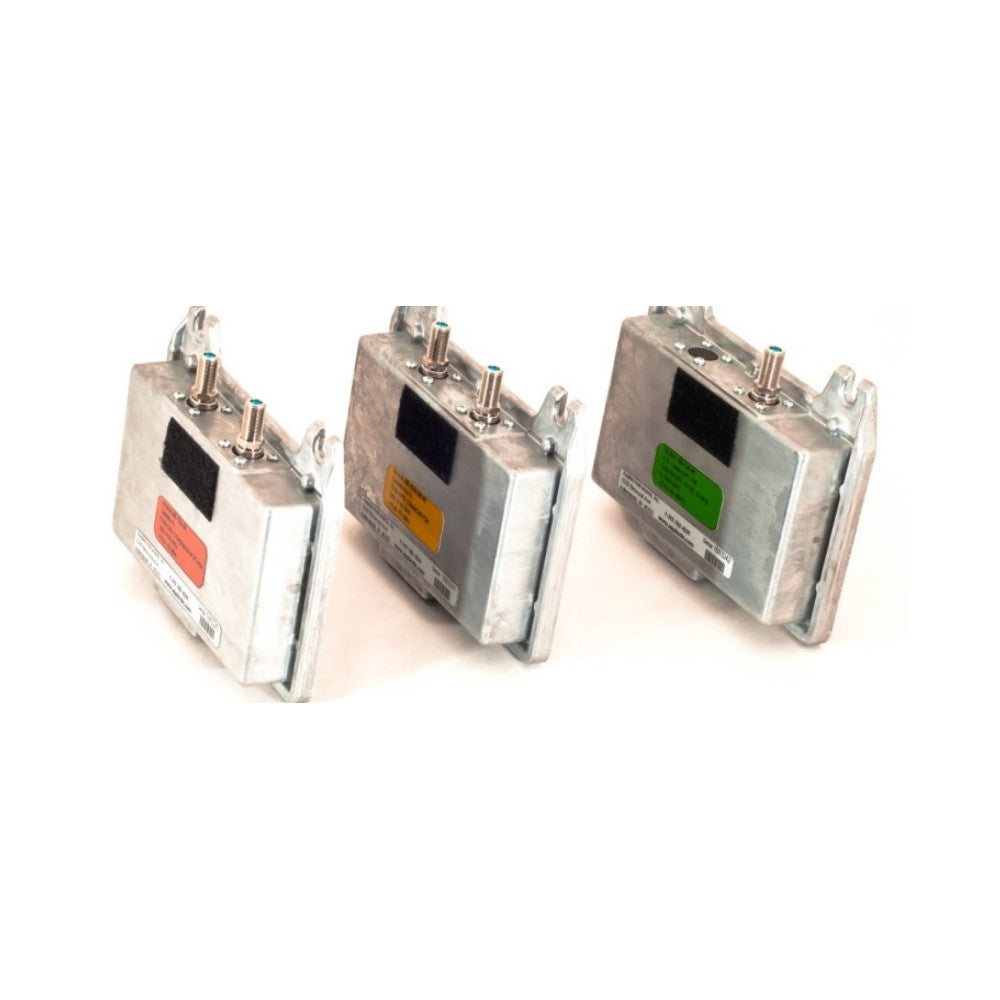

Applied Instruments XR-TS2-01 Tuner Module for use with XR-3 for North American DBS & Broadcast TVRO

FEATURES
 Compatible with XR-3 Modular Test Instrument
 Friendly user interface
 Satellite ID by "align-to-lock" or "automatic scan“
 ID multi-lock algorithm eliminates false positives
 Powers LNBs and multi-switches
 Use for L, C, X, Ku, or Ka band applications
 High sensitivity assures alignment optimization
 Geo-sensitive "Field Guide" software database stores all compatible satellites and transponders per global region
 Program and store up to 256 custom transponders
 Controls multi-LNBs/switches with 22kHz DiSEqC tone
 Manually tune to custom transponders using front panel keypad
 Audible tone for signal lock or peak
 Store measurements for Proof-of-performance reporting
 "Limit Scan" Pass/Fail for key transponders
 Displays antenna settings (AZ / EL / Skew) based on user's postal code or latitude and longitude coordinates
 Field replaceable type F barrel connectors
 Fast system boot-up time in less than 5 seconds

MEASUREMENTS
 Demodulates DVB-S, DSS / DIRECTV Legacy, Digicipher 2, Turbo FEC, & DVB-S2 (QPSK & 8PSK, CCM) signals
 Signal Level (dBm, dBmV, or dBμV) with present and peak bar graph
 Signal Quality (IRD, C/N, Eb/No, or Es/No)
 BER (Pre FEC / Viterbi & Post FEC / Reed Solomon) for DVB-S, DSS / DIRECTV Legacy, and Digicipher 2 signals
 Bad blocks, corrected blocks, and frame errors for DVB-S2 and Turbo FEC signals
 Voltage output of IRD / IDU (29V max)
 Current draw of LNB
 LNB frequency deviation (LNB LO drift estimate)
 Symbol Rate error
 Spectrum Screen (frequency on x-axis, amplitude on y- axis)
 Constellation Screen (I and Q demodulator values)

SPECIFICATIONS
Frequency Range................250-2150 MHz
Tuning Resolution...............4 kHz
Signal Level Range......... .. -75 to -15 dBm (+34 to +94 dBμV)
RF Level Accuracy..............+/- 2 dB typical, 3 dB max
Signal Lock Formats........... DVB-S (QPSK), Digicipher 2 (QPSK & OQPSK),
                                                DVB-S2 (QPSK & 8PSK, CCM), DSS / DIRECTV Legacy (QPSK), Turbo (QPSK & 8PSK)
Impedance...........................75 Ohm
LNB Power...........................13VDC for V/R, 18VDC for H/L
                                                21VDC for DIRECTV SWiM, 29VDC
Switch Control ....................22 kHz, DiSEqC
RF Connector ......................Type F barrel, field replaceable
Warranty..............................12 month limited
Specifications are subject to change without notice.
