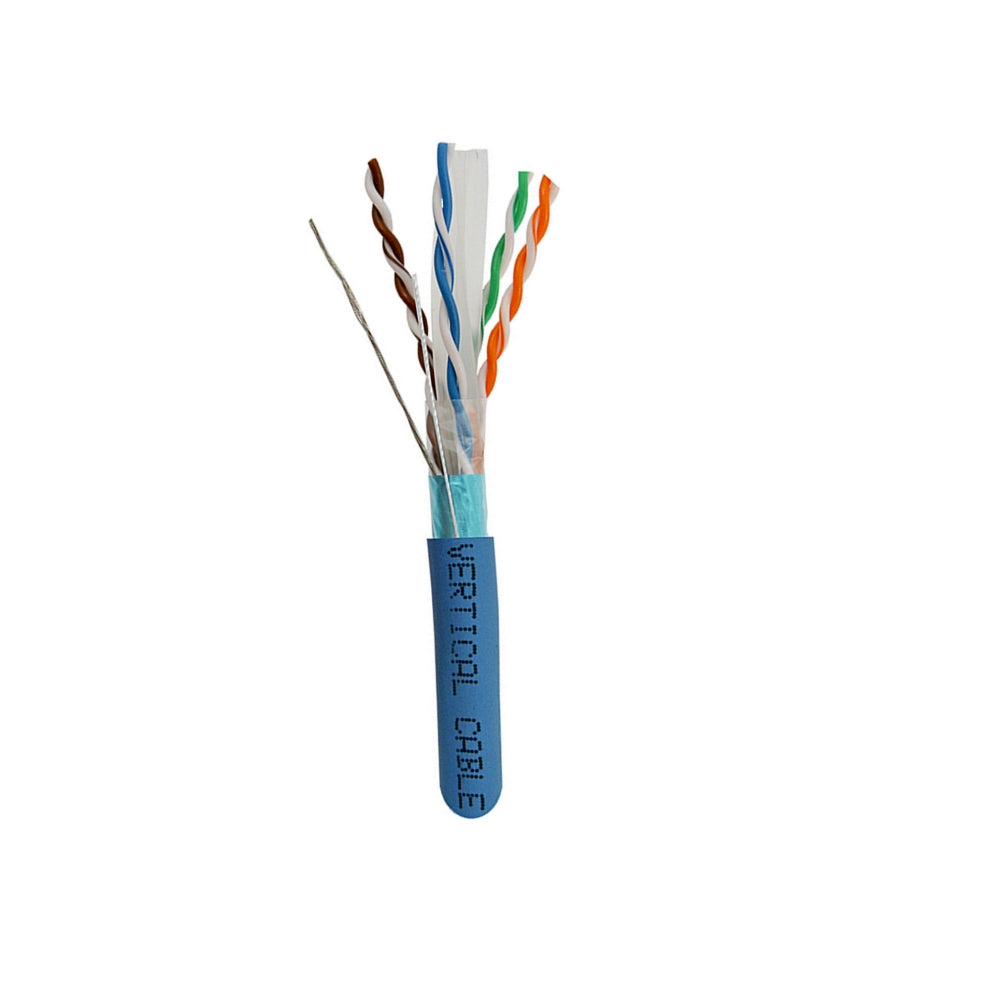

Vertical Cable VER1808 062-504/S/BL Cat6 Shielded 550MHz 23AWG Solid Bare Copper Conductor Cable, 1000 Ft Spool. Blue

WISW1808BL


You need to be a Registered Dealer to order this product. Please Login to your account or click here to Register.

Details

Vertical Cable 062-504/S/BL Cat6 Shielded 550MHz 23AWG Solid Bare Copper Conductor Cable (1000ft Spool / Blue)

Deliver power with ease! The Vertical Cable 062-504/S/BL Cat6 Shielded 550MHz 23AWG Solid Bare Copper Conductor Cable delivers high performance. Easily Identified Color-Striped Pairs and 550MHz Bandwidth for Data Application make for fast Ethernet and 155 Mbps TP-PMD/CDDI.

Complete Quality

ETL listed, and RoHS compliant, this cable is sound. It exceeds EIA/TIA 586-C.2, ISO/IEC-11801 and is Riser Rated.

Effortless Install

The Vertical Cable has an easily-strippable jacket and comes in a convenient 1000 foot spool.

Rated Temperature 75ºC
Rated Voltage 30V
Product Standard Certification CMR
NVP 70%
Conductor Solid Bare Copper
Size 23 AWG
Insulation HDPE
Average Thickness 0.29 mm
Insulation Diameter 1.15 ± 0.0005mm
Filler LDPE
Bond PE Tape
Shield AL-Foil
Drain Wire (TC) 0.5
Jacket PVC
Average Thickness 0.64 mm
Outer Diameter 7.6 ± 0.10 mm
Rip Cord Yes
Color of Pairs
Pair 1 Blue, White-Blue
Pair 2 Orange, White-Orange
Pair 3 Green, White Green
Pair 4 Brown, White-Brown
Mechanical Characteristics
Test Object Jacket
Test Material PVC
Before Tensile Strength ≥10.34 Mpa
Aging Elongation ≥100%
Aging Condition 100 x 168ºCxhrs
After Tensile Strength ≥7.21 (Mpa)
Aging Elongation ≥45%
Cold bend No Crack -20±2º Cx4hrs
Marking on Jacket Vertical 4001453 c(ETL) VERIFIED CMR FT4 STP SHIELDED 4PR 23 AWG CAT6 550MHz TIA/EIA-568C.2 ISO/IEC 11801:2002 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
